DOTP waterproof membrane formulations serve the least forgiving segment of flexible PVC: tunnels, below-grade foundations, green roofs, reservoir and landfill liners, and pond sealing. These membranes are 1.0-3.0 mm thick, frequently reinforced with polyester scrim, and specified to perform for 25-50 years in continuously wet soil that carries hydrocarbons, surfactants and organic acids. The plasticizer decides whether the sheet is still flexible in year twenty. This guide covers membrane types, how DOTP performs as a waterproofing membrane plasticizer against DINP and TOTM, loading and trial practice, and the compliance picture for export projects.
Key Takeaways
- ✅ Buried membranes are judged on chemical resistance and weld integrity, not on initial hardness
- ✅ DOTP keeps > 85% elongation after 90-day diesel immersion; DINP loses 15-25%
- ✅ Thermally welded DOTP seams reach > 90% of parent-material peel strength
- ✅ DOTP costs ~1.05-1.15x DINP versus 1.6-2.0x for TOTM, which is the usual reason TOTM is reserved for fuel-contact work
- ✅ Non-phthalate status removes the REACH Annex XVII documentation burden for export projects
Why Membranes Are a Demanding Application
A membrane compound is asked to do three things at once, and they pull in different directions:
- Stay flexible for decades while buried. Plasticizer that is extracted, oxidised or exuded cannot be replaced. Once the sheet stiffens, movement in the structure or settling of backfill cracks it. A cracked membrane is a failed waterproofing system.
- Resist the chemistry of the ground. Soil and groundwater carry hydrocarbons, surfactants, salts and organic acids. These attack the plasticizer-PVC bond and are the main reason legacy membranes embrittle.
- Weld into a continuous, leak-free sheet. Membranes are joined on site by thermal welding, and the seam, not the parent sheet, is where leaks begin. Plasticizer that blooms or volatilises at the seam interface creates pinholes and weak bonds.
Exposed membranes (roofing, pond edges) add UV and thermal cycling to that list, so the stabiliser package matters more than in buried work. Buried membranes, meanwhile, are judged almost entirely on leachate resistance.
PVC Waterproofing Membrane Types and Priorities
| Membrane type | Service environment | What the plasticizer must deliver |
|---|---|---|
| Roofing (exposed) | UV, rain, thermal cycling, wind uplift | Low volatility and no surface blooming so UV stabilisers stay effective; good low-temperature flexibility for cold installation |
| Tunnel and below-grade | Permanent hydrostatic pressure, alkaline groundwater, backfill chemicals | Extraction resistance and long-term flexibility where the sheet can never be inspected or replaced |
| Reservoir / pond liner | Continuous water contact, occasional chlorination, sunlight at the waterline | Low plasticizer loss into water plus UV stability at the exposed edge; check any potable-water approval that applies |
| Landfill cap and liner | Leachate with hydrocarbons, organic acids and surfactants | Maximum chemical resistance: this is the application where TOTM is most often specified and where DOTP's cost advantage has to be weighed against the duty |
| Foundation / basement | Hydrostatic groundwater, soil salts | Durable flexibility and weldability at thicknesses up to 3.0 mm |
DOTP vs DINP vs TOTM for Membranes
DINP was the historical default for flexible PVC sheeting; TOTM is the high-cost benchmark for aggressive chemical duty. DOTP sits between them on cost while matching or beating DINP on the properties that decide membrane life:
| Property | DOTP | DINP | TOTM |
|---|---|---|---|
| Elongation retention after 90-day diesel immersion | > 85% | 60-75% | > 90% |
| Thermally welded seam peel strength | > 90% of parent material | Baseline (lower with bloom) | > 90% of parent material |
| Plasticizer loss in 5 ppm chlorinated water, 28 days | < 0.5 wt% | 1.5-2.0 wt% | < 0.3 wt% |
| Inherent UV stability | Matches DINP; better in practice because low migration keeps stabilisers effective | Good | Good |
| Relative cost (DINP = 1.0) | 1.05-1.15 | 1.0 | 1.6-2.0 |
The practical reading: TOTM is worth its premium in fuel-contact and the most aggressive leachate duties, where its extra chemical resistance is the specification. For the large majority of civil engineering membranes, DOTP delivers the elongation retention and seam strength the project needs at close to DINP cost, and unlike DINP it carries no ortho-phthalate compliance burden. If you are reformulating a sheet that used DINP, the DOTP vs DOP comparison covers the chemistry and regulatory background, and the PVC film guide covers calendered film formulation more generally.
Setting the Loading and Running a Trial
There is no universal phr figure for a PVC waterproofing membrane plasticizer: loading is set by the hardness the installation requires, the thickness being calendered and the welding process. The reliable procedure is:
- Start from the phr of the DOP or DINP formulation you are replacing.
- Increase by roughly 2-5 phr to match the same hardness, since DOTP's plasticizing efficiency is marginally lower.
- Measure hardness, tensile strength, elongation at break and low-temperature flexibility, since membranes are installed in cold weather as often as warm.
- Weld a trial seam and test peel strength, not just the parent sheet; this is where plasticizer choice shows up first.
- For landfill or reservoir duty, add an immersion test in the relevant leachate or water chemistry before committing a production batch.
Processing and Welding Notes
The waterproofing membrane plasticizer is the component most exposed to the service environment, so formulation choices compound over a 25 to 50 year service life. Four adjustments cover most conversions:
- Mixing temperature: allow about 5-10 °C higher than a DINP formulation to reach full gelation.
- Gelation and calendering: expect a slightly longer gelation time; check bank behaviour and surface finish on the calender before scaling up.
- Scrim lamination: verify adhesion to polyester reinforcement separately: it is sensitive to formulation changes even when the sheet itself behaves.
- Welding window: DOTP's low volatility widens the usable welding window and reduces seam contamination, but confirm the setting on your own equipment rather than transferring DINP parameters directly.
- Stabiliser and lubricant package: keep it under review; exposed roofing grades need the UV package re-validated, buried grades need the antioxidant system checked.
Compliance for Waterproofing Membrane Projects
- General chemical compliance: DOTP is not restricted under REACH Annex XVII, RoHS or CPSIA, so the ortho-phthalate documentation burden disappears from the project file.
- Project-specific approvals: potable-water reservoir liners, landfill containment and roofing systems each carry their own approval frameworks and testing requirements. These are decided by the end use, not by the plasticizer alone, so confirm which standard applies before specifying.
- Documentation buyers ask for: batch CoA, third-party phthalate screening, and where required migration or immersion test reports. Our DOTP passes SGS screening of all 17 restricted phthalates (not detected) and is produced under ISO 9001/14001/45001/50001 certified systems.
Frequently Asked Questions
What plasticizer loading does a PVC waterproofing membrane need? ▾
Loading follows the target hardness, the flexibility the installation demands and the welding process, so it is set per product rather than by a single figure. The practical starting point is your current DOP or DINP phr plus roughly 2-5 phr, then confirm hardness, tensile strength, elongation and low-temperature flexibility in a trial.
How does DOTP compare with TOTM for waterproofing membranes? ▾
TOTM offers marginally better chemical resistance, especially against fuels, but costs roughly 1.6-2.0 times DINP (DINP = 1.0). For most civil-engineering membranes DOTP gives the better cost-to-performance balance and matches TOTM on welding and UV stability.
Can DOTP membranes resist soil chemicals and landfill leachate? ▾
DOTP-plasticized membranes retain flexibility after 90-day immersion in diesel fuel and synthetic landfill leachate, while DINP membranes lose 15-25% of their elongation under the same exposure. Resistance to hydrocarbons, surfactants and organic acids is the property that decides service life in buried applications.
Do DOTP membranes weld as well as DINP membranes? ▾
Yes. Thermally welded seams in DOTP membranes achieve peel strength above 90% of the parent material, matching or exceeding DINP performance. The low volatility of DOTP reduces blooming at the seam interface, which is where pinholes and leaks originate.
Are DOTP membranes compliant for export markets? ▾
DOTP is a non-phthalate terephthalate and is not restricted under REACH Annex XVII, RoHS or CPSIA, so it removes the ortho-phthalate documentation burden. Article-specific standards still apply: reservoir and potable-water liners, landfill liners and roofing systems each have their own approval frameworks, so confirm the applicable standard for the end use.
Membranes share their formulation family with our inflatable and pool-liner grades; see DOTP for inflatable products and pool liners for that side of the film family.
Reformulating a waterproofing membrane compound?

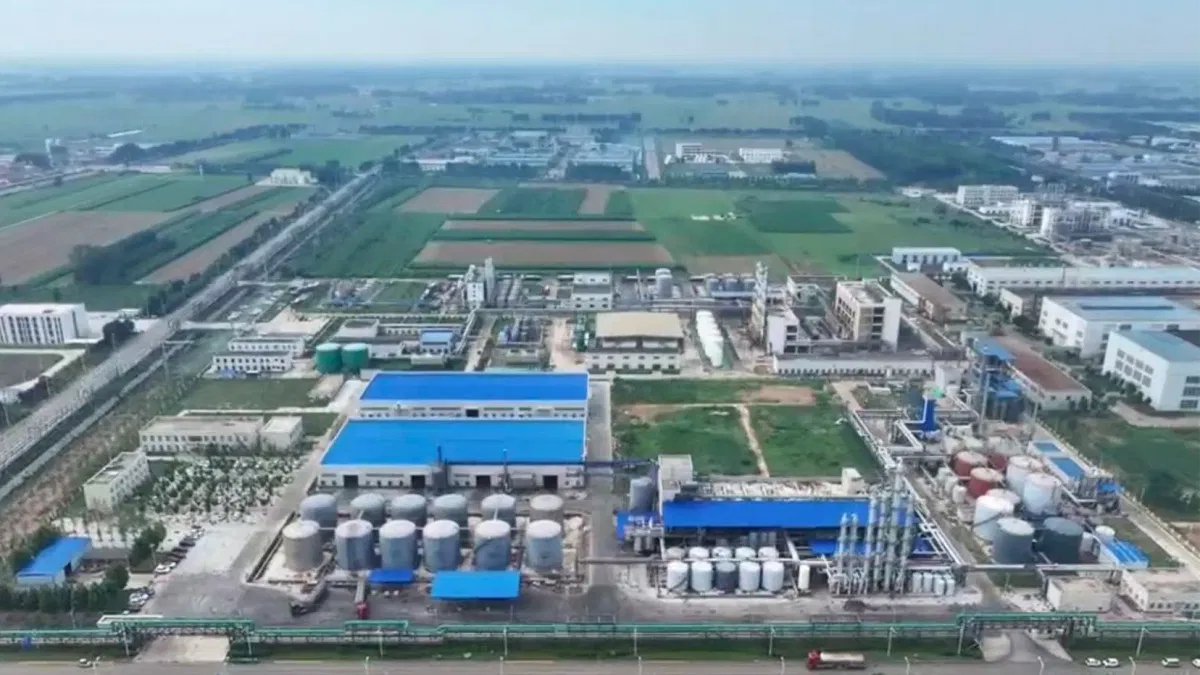

Shandong Changxing Plastic Additives is an ISO 9001/14001/45001/50001 certified manufacturer with 300,000 tons annual capacity. Send us your current formulation and duty conditions and we will supply a DOTP sample, batch CoA and the loading starting point for your trial. Performance data cited is based on internal laboratory testing and published industry benchmarks.
